RevoCell® Casement Window Features
Our casement windows feature triple weatherstripping for an airtight fit that prevents drafts, even during high winds. They offer superior energy efficiency with dual-pane insulated glass, while in triple-pane they are in a class of their own. Opening outwards using a nesting crank handle, our casement windows use top quality hardware, for an easy and trouble-free operation for decades to come.

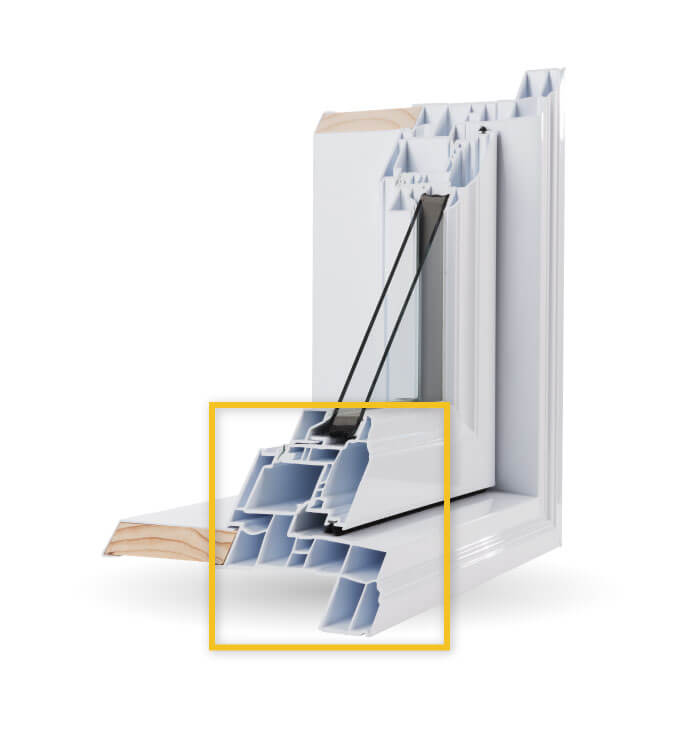

Microcellular PVC Construction
Our RevoCell® window frames, brickmoulds, and sashes are insulated with billions of closed microscopic cells for superior energy efficiency. They are fusion-welded as a single unit, impervious to the elements. The microcellular PVC structure has better screw holding power for hardware, and distributes stress better than hollow window frames, for extra durability.

Contemporary Design
Our RevoCell® casement windows feature a minimalist, slim profile that goes equally well with traditional and contemporary home designs.

4½” Fusion-welded Frame
Our casement windows come standard on a 4-1/2” deep frame, which is stronger and more durable than the standard 3-1/4” sold elsewhere. The deeper frames give extra dimensional stability and strength. It also allows for a lower sash profiles to maximize the glass surface.

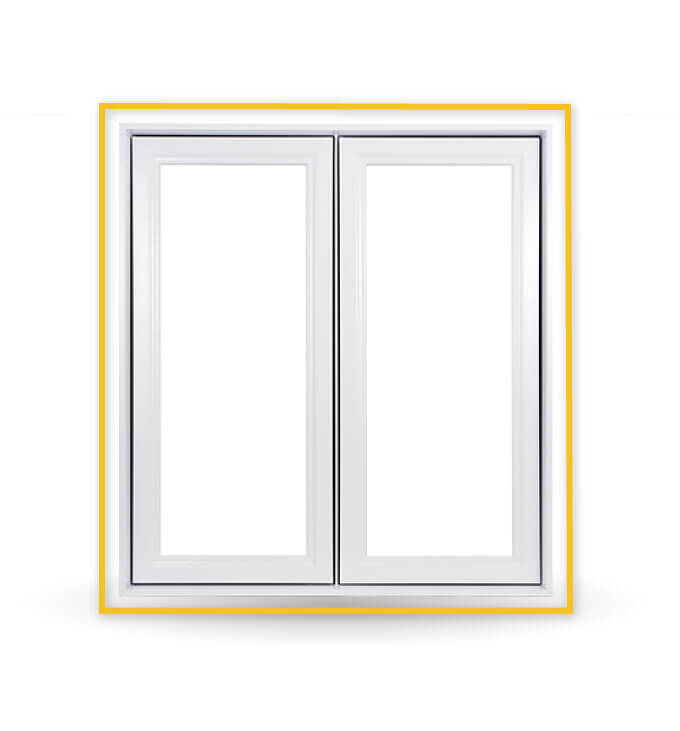

Structural Construction
Our RevoCell® multi-lite casement windows feature structurally strong, seamless one-piece frames with integrated cross-mullions, as opposed to the more common modular construction where each lite is a separate window. Our single frame will transfer loads better through the wall, will deflect stronger winds, and have fewer points at risk of water ingress or air leaks. It will also allow for a larger glass surface for more natural light.

Dual and Triple-pane Insulated Glass Units
Two or more layers of glass are joined together to create sealed hollow chambers that act as a thermal buffer. This drastically reduces direct heat transfer through the glass, as well as helps prevent condensation and ice build-up. It also helps soundproof the interior, especially in conjunction with a high-quality cellular spacer.

Low-emissivity Coated Glass
An invisibly thin coating is applied onto one or more of the glass surfaces, reflecting most of the heat in the form of infrared radiation back inside the home during winter and outside during summer, while letting most visible light pass through.

Argon Gas Filling
The air between the glass panes inside a thermal glass unit is replaced with argon. This inert, odourless gas is heavier than air, reducing convection between the panes. Its lower specific heat capacity reduces direct heat transfer. The argon fill hence reduces heat loss, and offsets water vapour to prevent condensation between the panes.

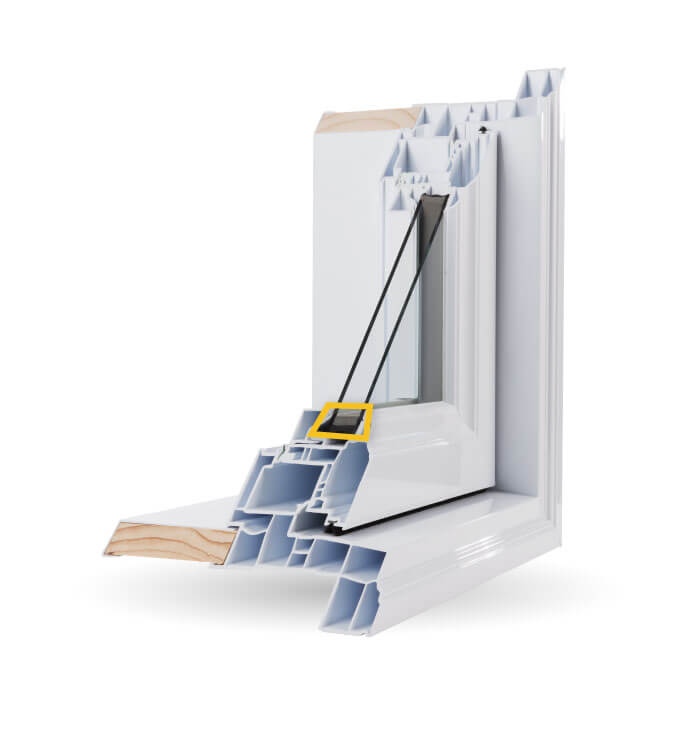

Ener-Edge® Warm-edge Spacer
Our insulated glass units use a cellular silicone warm-edge spacer with the lowest thermal conductivity on the market, minimizing heat transfer between the interior and the exterior. It also allows for the natural expansion and compression of glass due to environmental temperature changes without failing the seal between them.

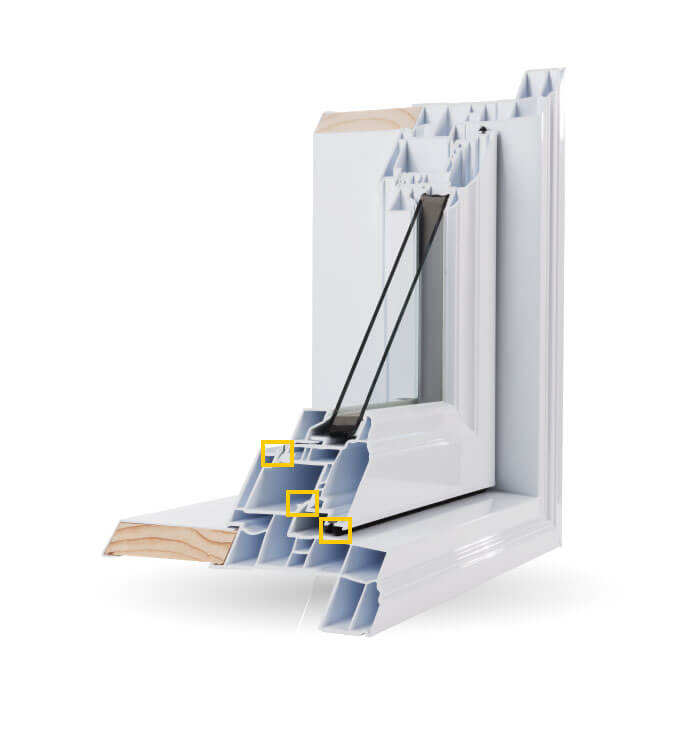

Triple Weatherstripping
Our RevoCell® window sashes use three continuous seals at the interface with the window frame and mullions. This stops drafts and the associated heat leaks through the window. The thermal glass unit is also sealed to the sash from both the inside and the outside.

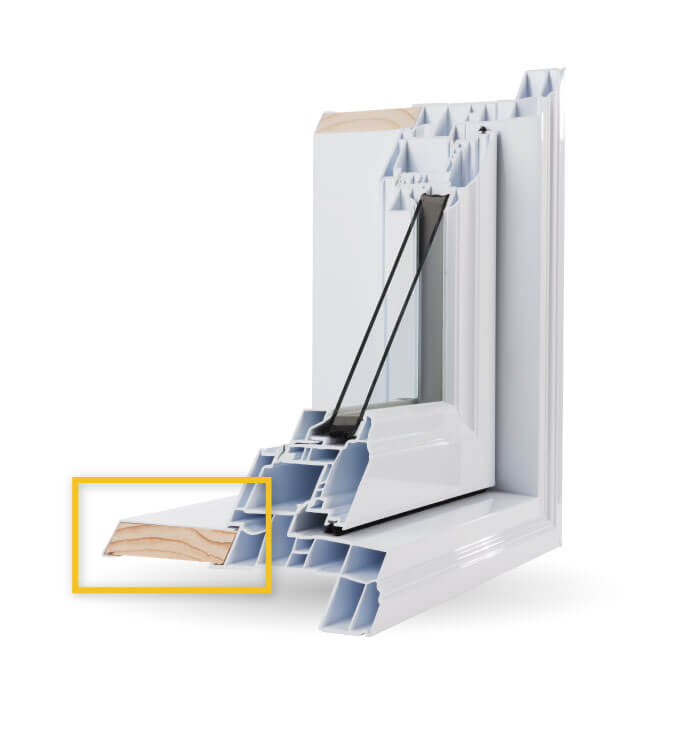

PVC-cladded Interior Wood Extension
Our casement windows use an interior wood extension that can be manufactured in any depth. This extension is cladded with maintenance-free PVC, providing a finish that does not need sealing or painting. It also allows for the installation of blinds or other window treatments, and adds to the window strength and durability.

High-gloss Finish
We use the highest-grade PVC powder and fabrication techniques which result in a high-gloss PVC finish. As a result, our casement windows are easier to clean, more durable, and won’t fade or yellow over time.

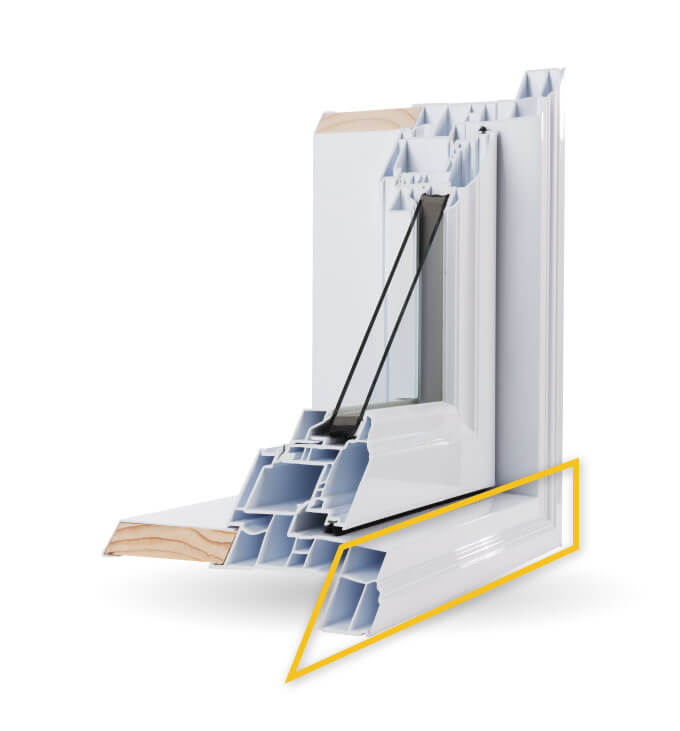

Integrated Brickmould Option
A brickmould that is part of the window frame creates a superior window assembly. The microcellular PVC construction adds insulation and window strength. It also means less chance of water and air leakage.

Low-profile Nesting Crank Handle
The unique cover and handle design of our crank handle will differentiate your window from the rest. The full-flip folding handle recesses in the operator cover, giving your window a smooth, contemporary look, while reducing interference with curtains and blinds.

NOVA® Multi-point Lock
The NOVA® Multi-point locking system is the most advanced and adaptable solution on the market. With a removable handle and cover, it offers optimized security, immense flexibility, and effortless operation.

Dual-arm Operator for Sashes over 22”
Any sash over 22” wide comes with a heavy-duty dual-arm operator. It allows opening and closing larger windows with 33% less effort than other operators of its kind.

“One-Click”, Easy-to-remove Screen
Our smooth-edge, easy-to-remove “One-Click” screens are the easiest screens to operate in the industry. With their durable yet elegant aluminium finish, these screens won’t warp or break down over time like some of the competition.

Durable Standard Colours
Our RevoCell® windows come in several standard colours that are engineered during the profile extrusion. Lighter tones are made with cap stock, meaning a layer of tinted PVC covering all exterior-facing surfaces. The darker tones are architectural-grade laminates that are UV reflective and extremely colourfast. Our standard colours are extremely UV and weather-resistant, and won’t peel, flake, or scratch like paint finishes.
Your choice of colour
Most homeowners get their replacement windows in stock white, which is a great all-around colour. But you don’t have to: we offer a comprehensive selection of durable factory finishes on RevoCell® windows, to suit any home style. And if these don’t work for you, custom paint is always an option.
RevoCell® Window Colours
Click Swatch to preview colour.

Energy Efficient Casement Windows
The manufacturing process of all Energy Star® certified casement windows installed by Verdun Windows and Doors are audited by an independent accredited certification body and approved by Natural Resources Canada. Our windows and doors carry the Energy Star® label showing their rating.
All of our RevoCell® mPVC windows meet and exceed the latest Energy Star designation criteria in Canada.


Casement Window Ratings
Here are the ratings on standard RevoCell® Casement windows, to CAN/CSA-A440.00 and NAFS-11 standards:
Window Model | Double-pane casement | Triple-pane casement |
---|---|---|
Air Tightness | A3 | A3 |
Forced Entry Resistance | F40 | F40 |
Performance Class | LC | LC |
Performance Grade | 85 | 85 |
U-factor Btu/ft²•hr•F° | 0.25 | 0.15 |
Energy Rating (ER) | 40 | 48 |
NRCan reference # | 35098681 | 35098665 |
ENERGY STAR rated | 2023 Most Efficient | 2023 Most Efficient |
Add an Extra Touch with Grilles
Grilles are the added touch to your windows that allow you to express yourself. Take advantage of our customization expertise to get a personalized window solution that gives your home a unique and distinctive look. Any of our grille configurations can be combined with any grille type to get the exact look you desire.
Grille Configurations

Contour
Contour Grilles add a classic look to your window reminiscent of vintage homes.

Rectangular
Rectangular Grilles are a common grille pattern found in homes built in the 1970's and later.

Partial Covering
Partial Covering Grilles are a new design trend in modern homes where only a portion of the window is covered.

Diamond Patterned
Diamond Patterned Grilles are a classic window grille style that resemble the craftsmanship and style found in colonial homes of the past.
Grille Types
A wide assortment of grille shapes and materials are offered to you to allow you to find the perfect match to your home.

Slimline
Pewter

Brass


Georgian
White

Ivory

Khaki

Brown

Black


Rectangular
White

Ivory

Khaki

Brown

Black

Treat the Window with Your Choice of Glass
Textured or coloured glass ensures privacy while allowing light to penetrate into bathrooms and other rooms requiring privacy. Coloured glass can also be used to complement the design of your home.
Glass Finishes

Clear

Bronze

Grey

Frosted

Gluechip
