RevoCell® Awning Window Features

Like our casement windows, awning windows feature triple weatherstripping for an airtight fit, even during high winds. They are very energy efficient with dual-pane glass, while in triple-pane have no match. Awning windows open outwards using a fold-away crank handle, allowing for easy ventilation even when it rains. They are especially convenient as part of larger windows. With superior hardware, they are built for easy operation for decades to come.

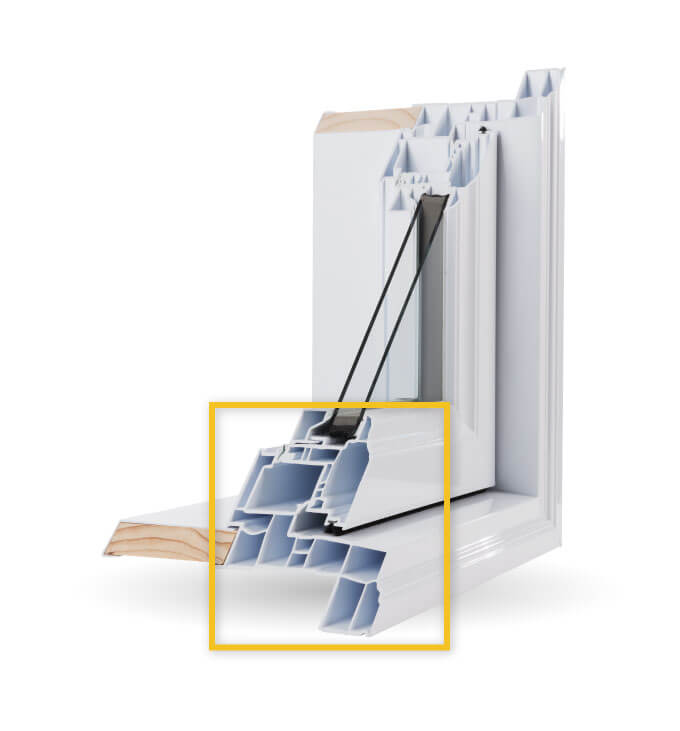

Awning Windows - Microcellular PVC construction

Microcellular PVC construction

Our RevoCell® window frames, brickmoulds, and sashes are insulated with billions of closed microscopic cells for superior energy efficiency. They are fusion-welded as a single unit, impervious to the elements. The microcellular PVC structure has better screw holding power for hardware, and distributes stress better than hollow window frames, for extra durability.

Awning Windows - Contemporary design

Contemporary design

Our RevoCell® awning windows feature a minimalist, slim profile that goes equally well with traditional and contemporary home designs.

Awning Windows - 4½” fusion-welded frame

4½” fusion-welded frame

Our awning windows come standard on a 4-1/2” deep frame, which is stronger and more durable than the standard 3-1/4” sold elsewhere. The deeper frames give extra dimensional stability and strength. It also allows for a lower sash profiles to maximize the glas surface.

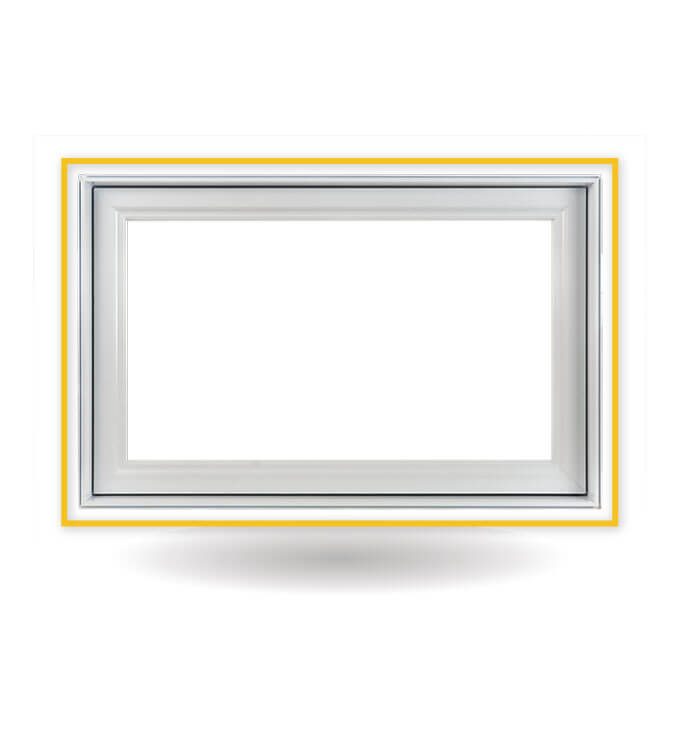

Awning Windows - Structural construction

Structural construction

Our RevoCell® multi-lite awning windows feature structurally strong, seamless one-piece frames with integrated cross-mullions, as opposed to the more common modular construction where each lite is a separate window. Our single frame will transfer loads better through the wall, will deflect stronger winds, and have fewer points at risk of water ingress or air leaks. It will also allow for a larger glass surface for more natural light.

Awning Windows - Dual and triple-pane insulated glass units

Dual and triple-pane insulated glass units

Two or more layers of glass are joined together to create sealed hollow chambers that act as a thermal buffer. This drastically reduces direct heat transfer through the glass, as well as helps prevent condensation and ice build-up. It also helps soundproof the interior, especially in conjunction with a high-quality cellular spacer.

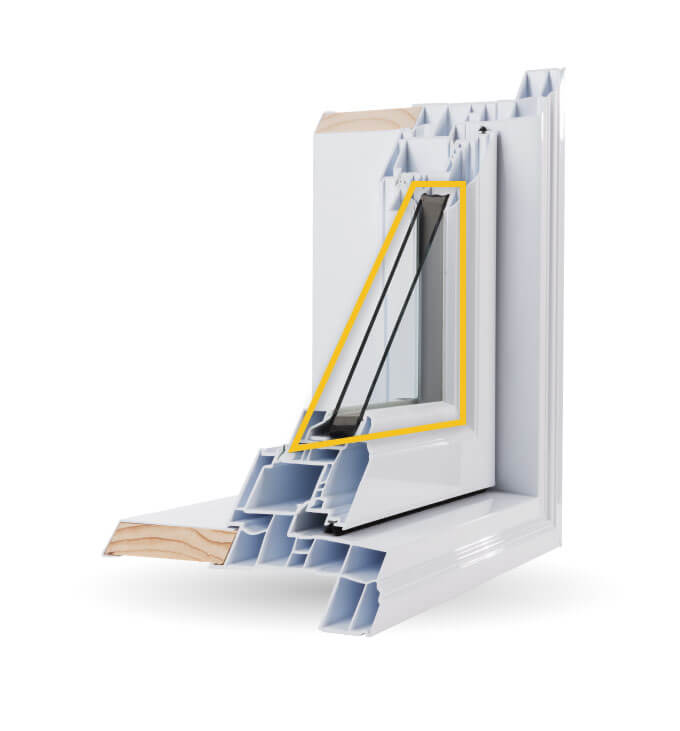

Awning Windows - Low-emissivity coated glass

Low-emissivity coated glass

An invisibly thin coating is applied onto one or more of the glass surfaces, reflecting most of the heat in the form of infrared radiation back inside the home during winter and outside during summer, while letting most visible light pass through.

Awning Windows - Argon gas filling

Argon gas filling

The air between the glass panes inside a thermal glass unit is replaced with argon. This inert, odourless gas is heavier than air, reducing convection between the panes. Its lower specific heat capacity reduces direct heat transfer. The argon fill hence reduces heat loss, and offsets water vapour to prevent condensation between the panes.

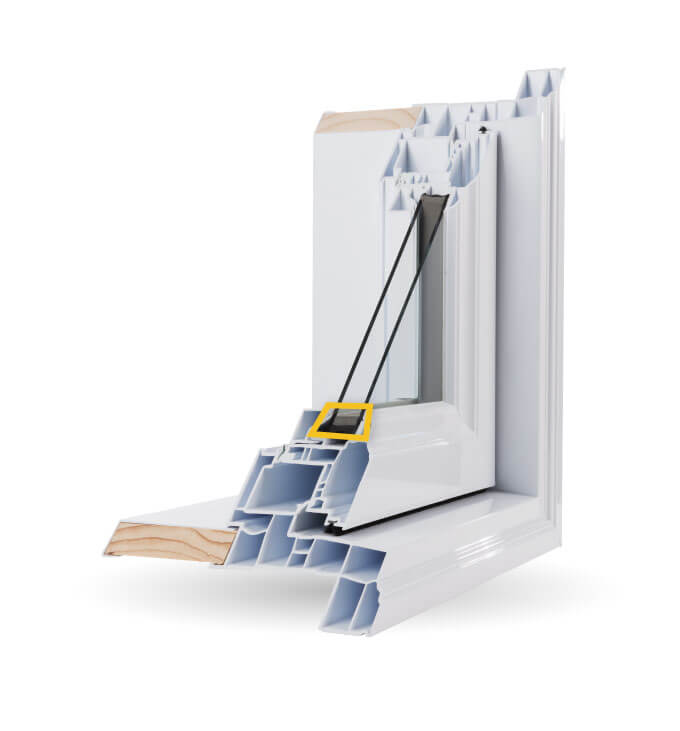

Awning Windows - Ener-Edge® warm-edge spacer

Ener-Edge® warm-edge spacer

Our insulated glass units use a cellular silicone warm-edge spacer with the lowest thermal conductivity on the market, minimizing heat transfer between the interior and the exterior. It also allows for the natural expansion and compression of glass due to environmental temperature changes without failing the seal between them.

Awning Windows - Triple weatherstripping

Triple weatherstripping

Our RevoCell® window sashes use three continuous seals at the interface with the window frame and mullions. This stops drafts and the associated heat leaks through the window. The thermal glass unit is also sealed to the sash from both the inside and the outside.

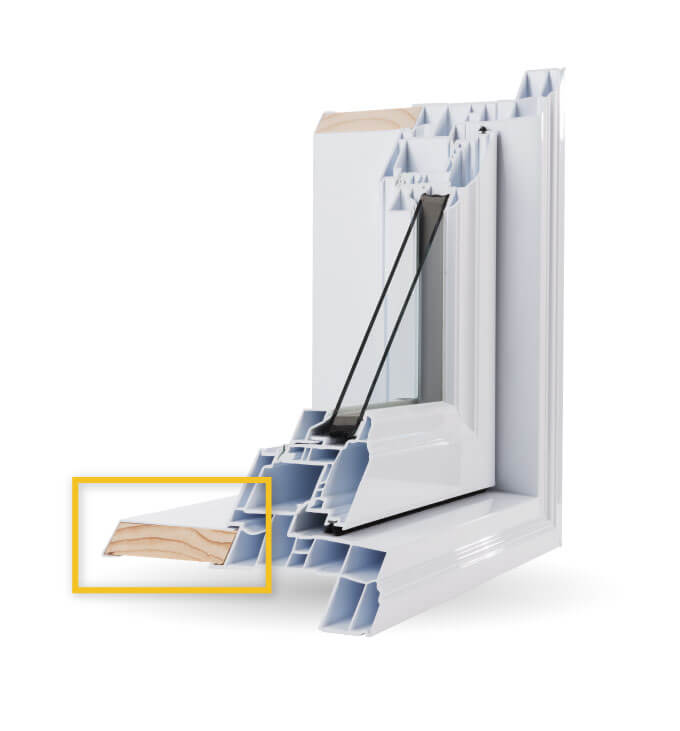

Awning Windows - PVC-cladded interior wood extension

PVC-cladded interior wood extension

Our awning windows use an interior wood extension that can be manufactured in any depth. This extension is cladded with maintenance-free PVC, providing a finish that does not need sealing or painting. It also allows for the installation of blinds or other window treatments, and adds to the window strength and durability.

Awning Windows - High-gloss finish

High-gloss finish

We use the highest-grade PVC powder and fabrication techniques which result in a high-gloss PVC finish. As a result, our awning windows are easier to clean, more durable, and won’t fade or yellow over time.

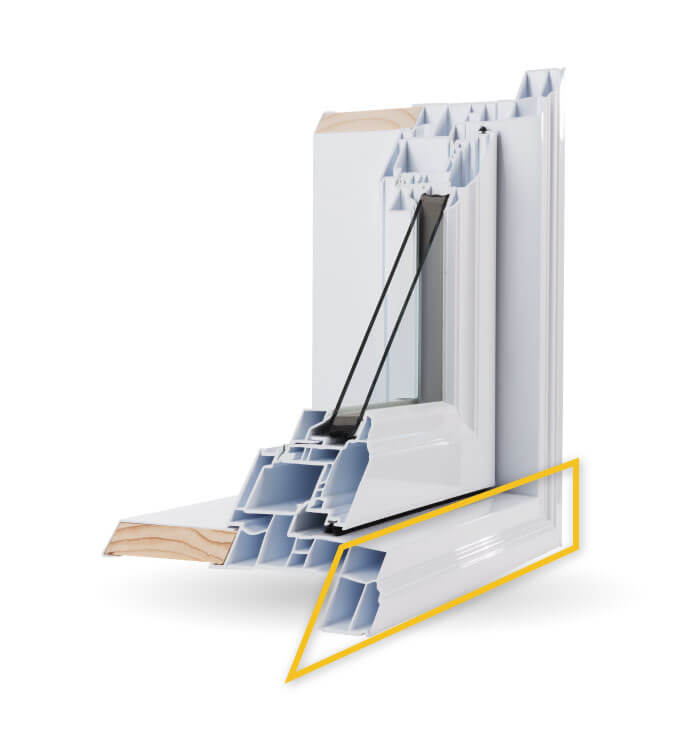

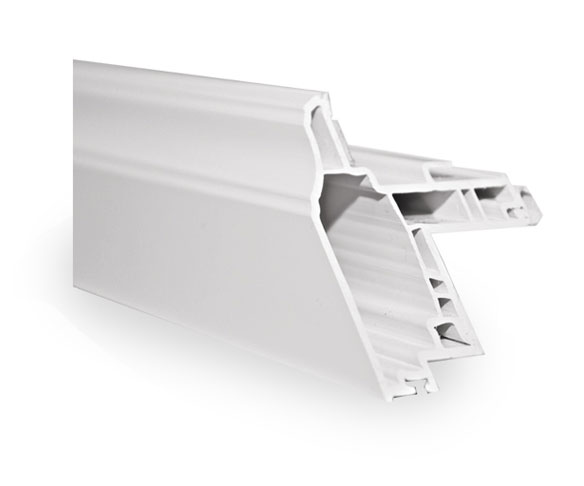

Awning Windows - Integrated brickmould (option)

Integrated brickmould (option)

A brickmould that is part of the window frame creates a superior window assembly. The microcellular PVC construction adds insulation and window strength. It also means less chance of water and air leakage.

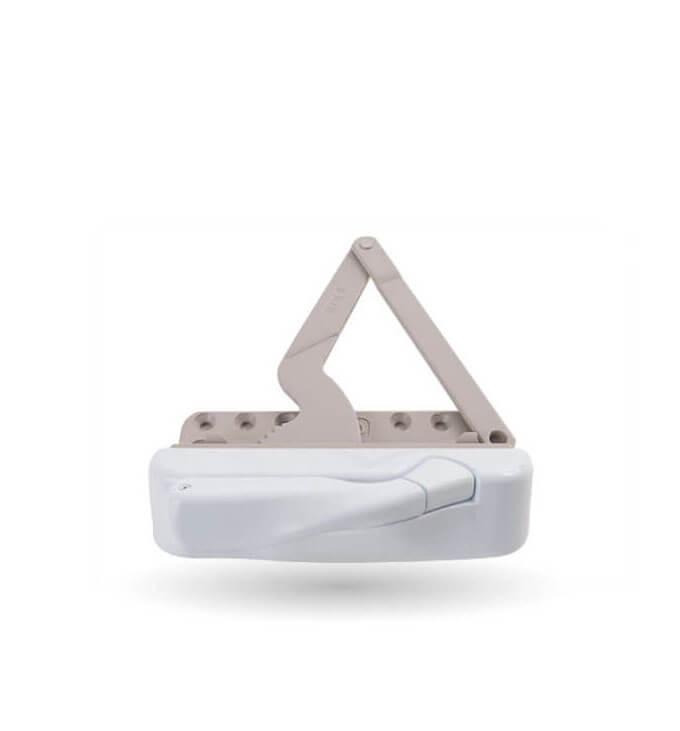

Awning Windows - Low-profile nesting crank handle

Low-profile nesting crank handle

The unique cover and handle design of our crank handle will differentiate your window from the rest. The full-flip folding handle recesses in the operator cover, giving your window a smooth, contemporary look, while reducing interference with curtains and blinds.

Awning Windows - NOVA® multi-point lock

NOVA® multi-point lock

The NOVA® Multi-point locking system is the most advanced and adaptable solution on the market. With a removable handle and cover, it offers optimized security, immense flexibility, and effortless operation.

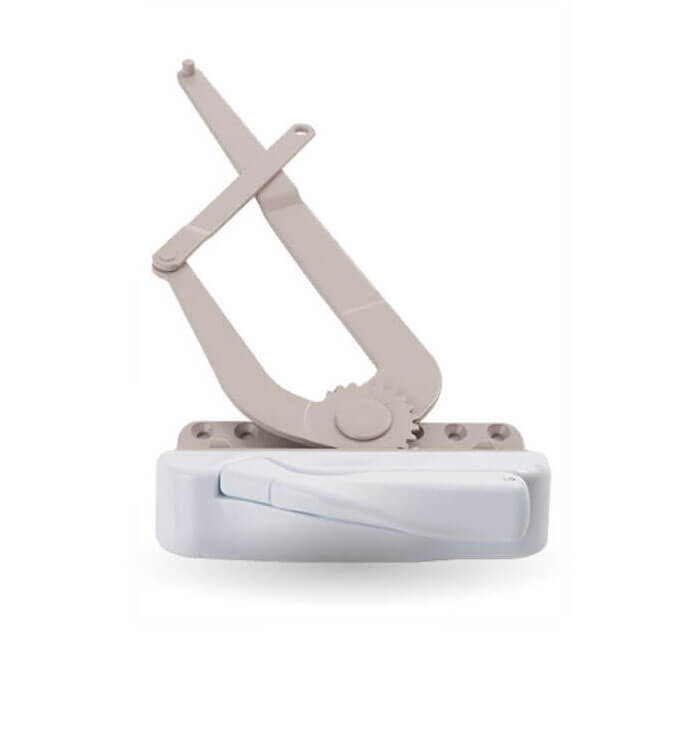

Awning Windows - Robust awning operator

Robust awning operator

Our awning windows come with a high-performance awning operator which allows opening and closing large windows with 33% less effort than other operators of its kind. These operators feature a sealed housing to reduce water and air infiltration without the use of caulk or additional sealant.

Awning Windows - “One-Click”, easy-to-remove screen

“One-Click”, easy-to-remove screen

Our smooth-edge, easy-to-remove “One-Click” screens are the easiest screens to operate in the industry. With their durable yet elegant aluminium finish, these screens won’t warp or break down over time like some of the competition.

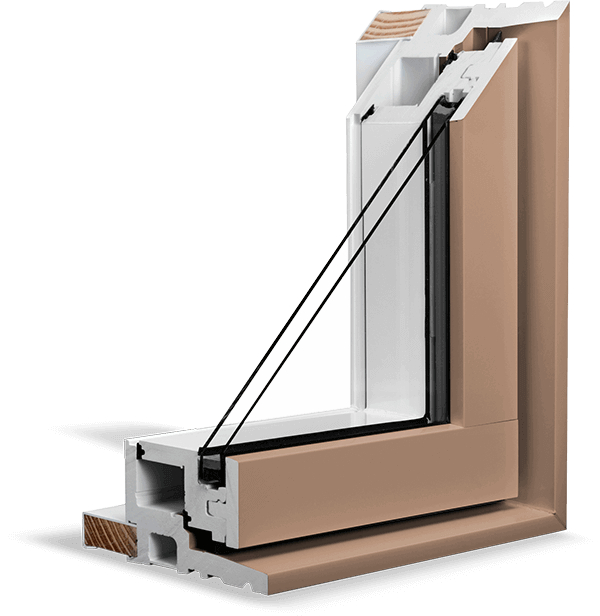

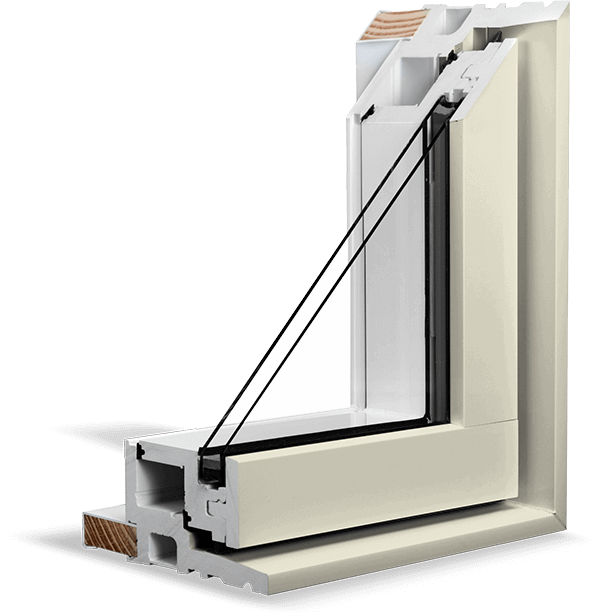

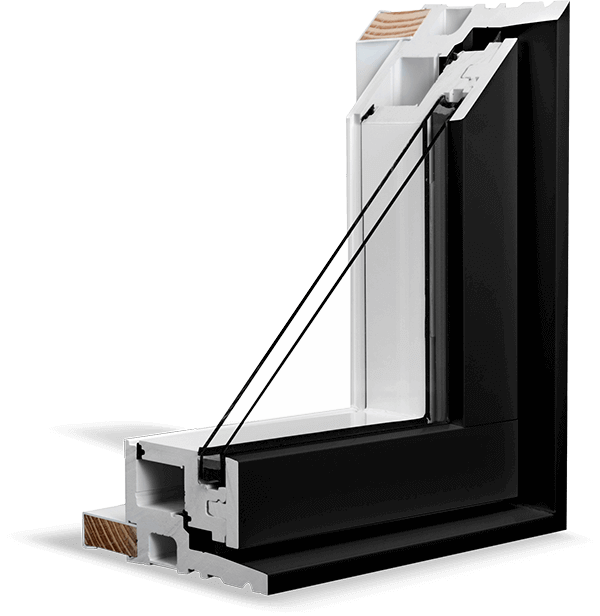

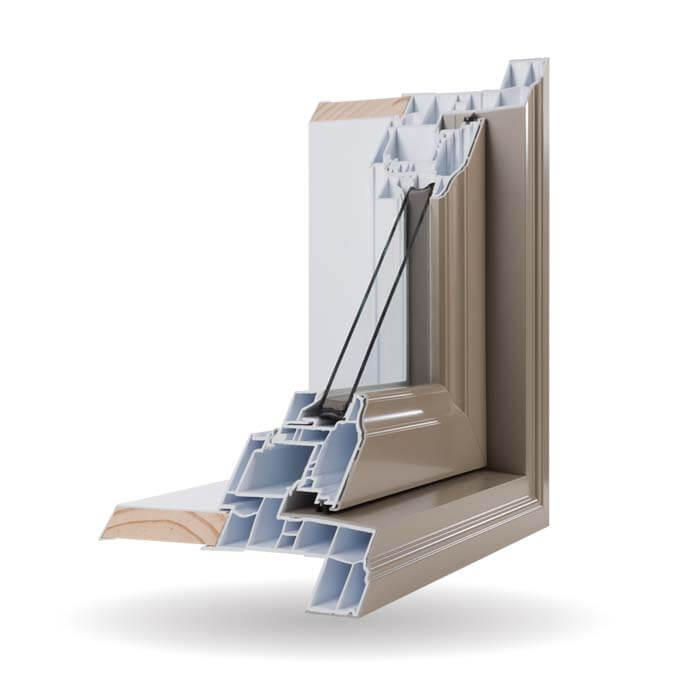

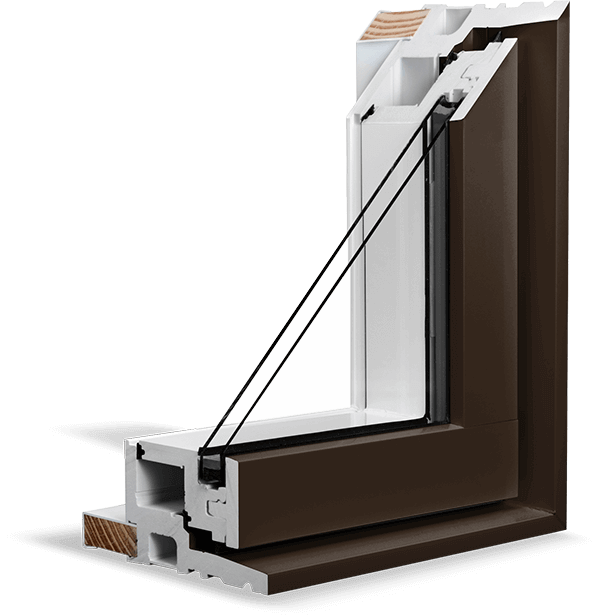

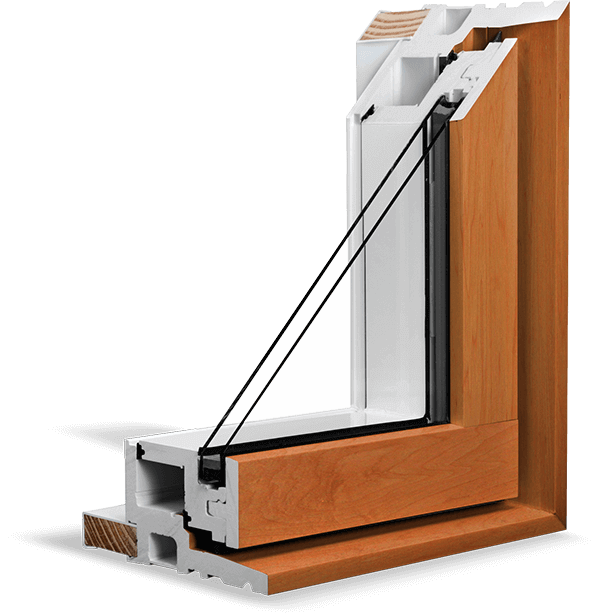

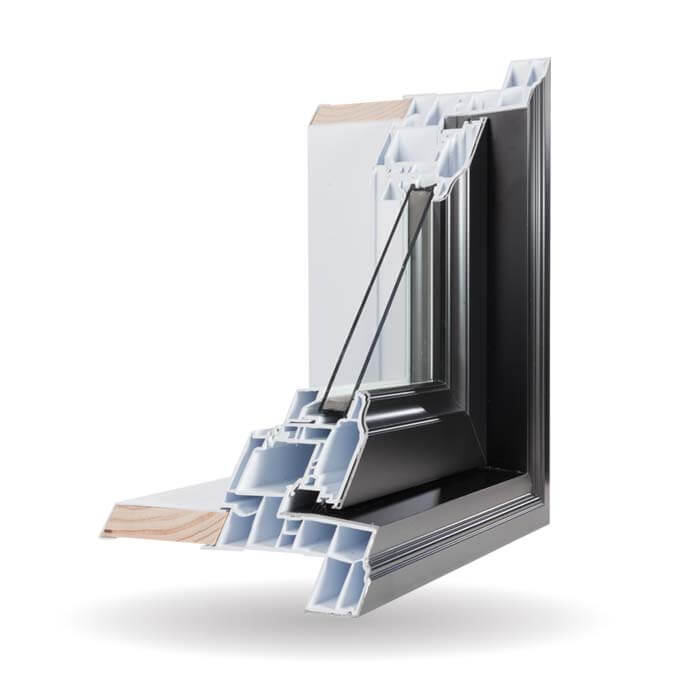

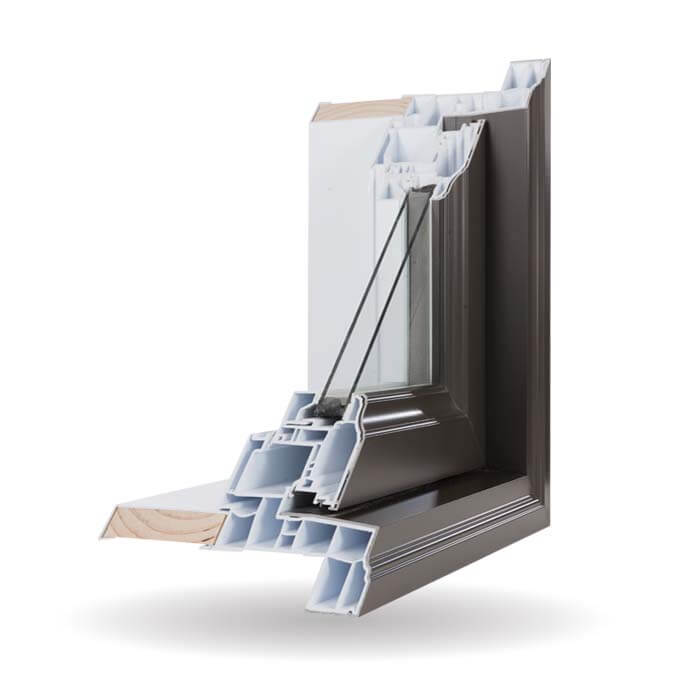

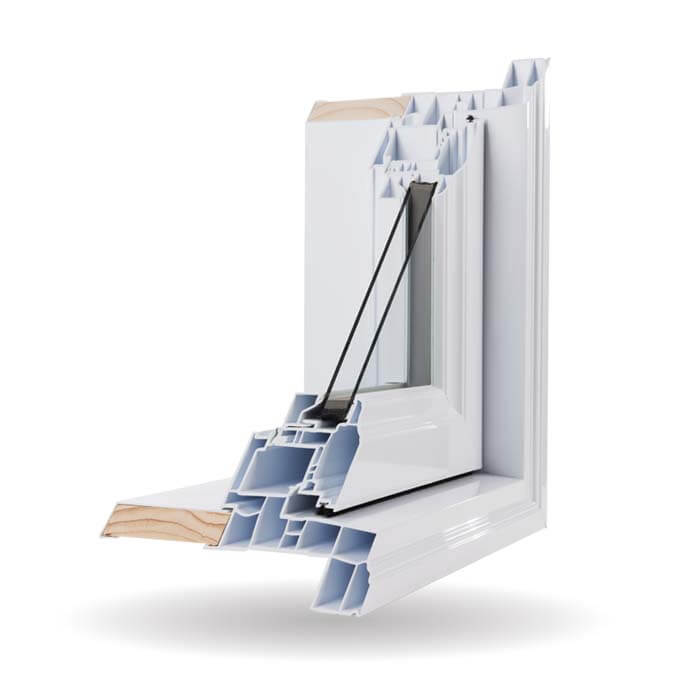

Awning Windows - Durable standard colours

Durable standard colours

Our RevoCell® windows come in several standard colours that are engineered during the profile extrusion. Lighter tones are made with cap stock, meaning a layer of tinted PVC covering all exterior-facing surfaces. The darker tones are architectural-grade laminates that are UV reflective and extremely colourfast. Our standard colours are extremely UV and weather-resistant, and won’t peel, flake, or scratch like paint finishes.

Energy Efficient Awning Windows

The manufacturing process of all Energy Star® certified awning windows installed by Verdun Windows and Doors are audited by an independent accredited certification body and approved by Natural Resources Canada. Our windows and doors carry the Energy Star® label showing their rating.

All of our RevoCell® mPVC windows meet and exceed the latest Energy Star designation criteria in Canada.

Energy Star's Most Efficient 2020
A map showing the Energy Star Rating Zones.

Awning Window Ratings

Here are the ratings on standard RevoCell® Awning windows, to CAN/CSA-A440.00 and NAFS-11 standards:

Layers of glazing 2 (dual pane) 3 (triple pane)
Air resistance A3 A3
Water resistance B7 B7
Wind resistance C5 C5
Resistance to forced entry F-40 F-40
Performance grade 85 85
Performance class LC LC
Max size tested 34” x 81” 34” x 81”
U-value (imperial) 0.21 0.15
Energy Rating (ER) 40 48
NRCan reference # NR6681-34613117-ES5 NR6681-34613133-ES5
ENERGY STAR rated Yes 2020 Most Efficient

Add an Extra Touch with Grilles

Grilles are the added touch to your windows that allow you to express yourself. Take advantage of our customization expertise to get a personalized window solution that gives your home a unique and distinctive look. Any of our grille configurations can be combined with any grille type to get the exact look you desire.

Grille Configurations

Contour Grille Option

Contour

Contour Grilles add a classic look to your window reminiscent of vintage homes.

Rectangular Grille Option

Rectangular

Rectangular Grilles are a common grille pattern found in homes built in the 1970's and later.

Partial Covering Grille Option

Partial Covering

Partial Covering Grilles are a new design trend in modern homes where only a portion of the window is covered.

Diamond Patterned Grille Option

Diamond Patterned

Diamond Patterned Grilles are a classic window grille style that resemble the craftsmanship and style found in colonial homes of the past.

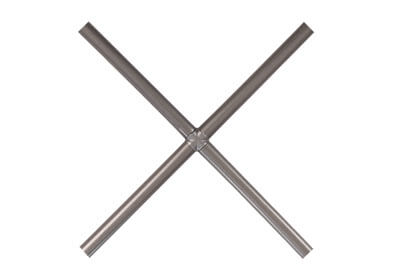

Grille Types

A wide assortment of grille shapes and materials are offered to you to allow you to find the perfect match to your home.

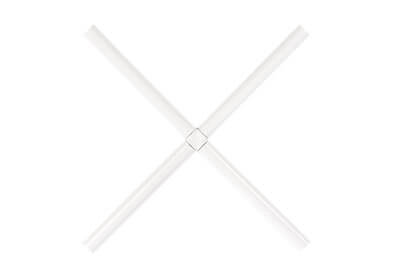

Slimline Grilles - Pewter

Slimline

Pewter
Slimline Grilles - Pewter
Brass
Slimline Grilles - Brass
Georgian Grilles - White

Georgian

White
Georgian Grilles - White
Ivory
Georgian Grilles - Ivory
Khaki
Georgian Grilles - Khaki
Brown
Georgian Grilles - Brown
Black
Georgian Grilles - Black
Rectangular Grilles - White

Rectangular

White
Rectangular Grilles - White
Ivory
Rectangular Grilles - Ivory
Khaki
Rectangular Grilles - Khaki
Brown
Rectangular Grilles - Brown
Black
Rectangular Grilles - Black

Treat the Window with Your Choice of Glass

Textured or coloured glass ensures privacy while allowing light to penetrate into bathrooms and other rooms requiring privacy. Coloured glass can also be used to complement the design of your home.

Glass Finishes

Clear Glass Finish

Clear

Bronze Glass Finish

Bronze

Grey Glass Finish

Grey

Frosted Glass Finish

Frosted

Gluechip Glass Finish

Gluechip
